IBP-Model

Notebook authors: Ina Rusch

Package authors: Martin Rother, Ina Rusch

Resources

Python package: ibpmodel
Code
Documentation
Swarm Data Handbook

Basic usage

import ibpmodel as ibp
import numpy as np
import matplotlib.pyplot as plt

Calculate the IBP model at given time of year, position, and conditions:

ibp.calculateIBPindex(
    day_month=15,       # Day of Year or Month
    longitude=0,        # Longitude in degree
    local_time=20.9,    # Local time in hours
    f107=150,            # F10.7 cm Solar Flux index
)

	Doy	Month	Lon	LT	F10.7	IBP
0	15	1	0	20.9	150	0.3547

ibp.calculateIBPindex(day_month=['Jan','Feb','Mar'], local_time=22)

	Doy	Month	Lon	LT	F10.7	IBP
0	15	1	-180	22	150	0.0739
1	15	1	-175	22	150	0.0722
2	15	1	-170	22	150	0.0717
3	15	1	-165	22	150	0.0728
4	15	1	-160	22	150	0.0771
...	...	...	...	...	...	...
211	74	3	155	22	150	0.2061
212	74	3	160	22	150	0.2025
213	74	3	165	22	150	0.1994
214	74	3	170	22	150	0.1967
215	74	3	175	22	150	0.1943

216 rows × 6 columns

Plot the global pattern for a given day:

ibp.plotIBPindex(doy=349)

Plot the month vs longitude pattern:

ibp.plotButterflyData(f107=150)

More examples

ibp.calculateIBPindex('Jan', longitude=170, local_time=np.arange(-2,-1,0.1))

	Doy	Month	Lon	LT	F10.7	IBP
0	15	1	170	-2.0	150	0.0814
1	15	1	170	-1.9	150	0.0830
2	15	1	170	-1.8	150	0.0843
3	15	1	170	-1.7	150	0.0850
4	15	1	170	-1.6	150	0.0853
5	15	1	170	-1.5	150	0.0852
6	15	1	170	-1.4	150	0.0846
7	15	1	170	-1.3	150	0.0837
8	15	1	170	-1.2	150	0.0823
9	15	1	170	-1.1	150	0.0806

ibp.calculateIBPindex(day_month=[1,15,31], longitude=[-170,175,170], local_time=0, f107=150)

	Doy	Month	Lon	LT	F10.7	IBP
0	1	1	-170	0	150	0.0411
1	1	1	175	0	150	0.0456
2	1	1	170	0	150	0.0486
3	15	1	-170	0	150	0.0430
4	15	1	175	0	150	0.0477
5	15	1	170	0	150	0.0508
6	31	1	-170	0	150	0.0478
7	31	1	175	0	150	0.0529
8	31	1	170	0	150	0.0563

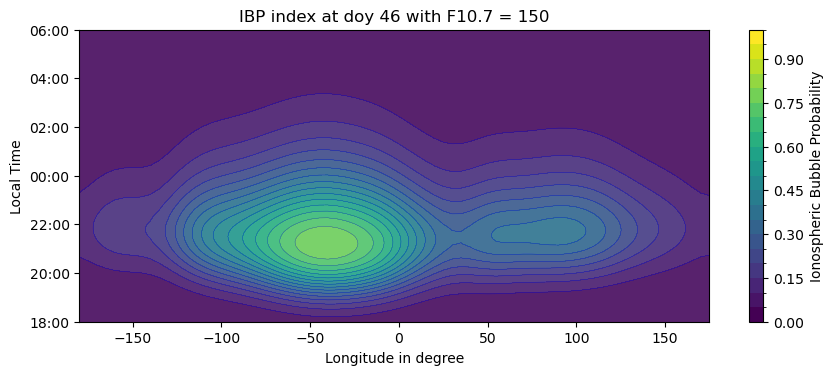

ibp.plotIBPindex('Feb', cmap='viridis', alpha=0.9)

doys = [319, 349, 15, 46]
fig_doys, axes_doys = plt.subplots(len(doys),1, layout='constrained',figsize=(9, 15))

for d, ax in zip(doys, axes_doys):
    ax, scalarmap = ibp.plotIBPindex(d, ax=ax)

ibp.ibpforward.setcolorbar(scalarmap, fig_doys, axes_doys, fraction=0.05)
plt.show()

solar = [90, 130, 180]
doy = 349
fig_solar, axes_solar = plt.subplots(len(solar),1, layout='constrained',figsize=(9, 13))
fig_solar.suptitle(f"Doy {doy} with different solar radio flux", fontsize=16)

for f, ax in zip(solar, axes_solar):
    ax, scalarmap = ibp.plotIBPindex(doy, f107=f, ax=ax)
    ax.set_title(f"IBP by solar radio flux {f}")

cbar = ibp.ibpforward.setcolorbar(scalarmap, fig_solar, axes_solar, fraction=0.05, orientation='horizontal')
cbar.set_label('new label name')

ibp.plotButterflyData(150, cmap='magma')

solar = [130, 180]
fig_bfly, axes_bfly = plt.subplots(1,len(solar), layout='constrained',figsize=(12.4, 5))

for b, ax in zip(solar, axes_bfly):
    ax, scalarmap = ibp.plotButterflyData(b, ax=ax)

ibp.ibpforward.setcolorbar(scalarmap, fig_bfly, axes_bfly)
plt.show()

Visualisation along Swarm orbits

Source:
https://igit.iap-kborn.de/ibp/ibp-model/-/blob/main/template/IBP-VirES.ipynb

%pip install --quiet lxml

WARNING: Running pip as the 'root' user can result in broken permissions and conflicting behaviour with the system package manager, possibly rendering your system unusable.It is recommended to use a virtual environment instead: https://pip.pypa.io/warnings/venv. Use the --root-user-action option if you know what you are doing and want to suppress this warning.

Note: you may need to restart the kernel to use updated packages.

import ibpmodel as ibp
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
from datetime import datetime, timezone, timedelta, date
from viresclient import SwarmRequest

def getlt(datum, lon):
    '''Output of the day of the year and local time for specifying date(s) and longitude(s).

    Parameters
    ----------
    datum : datetime or list of datetimes
    lon : int or list of int
        The geographical longitude, ``-180 <= longitude <= 180``.

    Returns
    -------
    tupel
        contains (list of) day(s) of the year and (list of) local time(s)
    '''
    def calclt(date, lon):
        return round((date.hour + date.minute/60 + date.second/3600 + 24*lon/360) % 24, 1)

    if isinstance(datum, datetime):
        doys = int(datum.strftime('%j'))
        lts = calclt(datum, lon)

    elif isinstance(datum, list):
        doys = []
        lts = []
        for d, l in zip(datum, lon):
            doys.append(int(d.strftime('%j')))
            lts.append(calclt(d,l))

    return (doys, lts)


def loadsatellitedata(starttime, endtime, satellite):
    '''Load data via viresclient

    Parameters
    ----------
    starttime : datetime
    endtime : datetime
    satellite : str
        name of satellite

    Returns
    -------
    pandas.DataFrame

    '''
    request = SwarmRequest()
    request.set_collection(f"SW_OPER_IBI{satellite}TMS_2F")
    request.set_products(measurements=request.available_measurements("IBI"),
                         auxiliaries=['F10_INDEX', 'F107'])
    data = request.get_between(starttime, endtime)
    df = data.as_dataframe()
    df = df[ (df.Bubble_Index > -1) ]

    return df


def downloadfn(dates):
    '''Download Solar Radio Flux for specified date(s).

    Parameters
    ----------
    dates : datetime or list of datetimes

    Returns
    -------
    list of numpy.float64
        Solar Radio Flux
    '''
    def loaddf(year):
        df = pd.read_html(f'https://spaceweather.gc.ca/forecast-prevision/solar-solaire/solarflux/sx-5-flux-en.php?year={year}')[0]
        return df

    def getfn(df,date):
        return df[ (df.Date == date.strftime("%Y-%m-%d")) & (df.Time == "20:00:00") ]["Observed Flux"].values[0]

    if isinstance(dates, datetime):
        years = [ dates.year ]
        dates = [ dates ]
    elif isinstance(dates, list):
        years = [ dates[0].year ]
    else:
        raise TypeError(f"must be datetime or list of datetimes")

    df_fn = loaddf(years[0])
    fn = []

    for d in dates:
        y = d.year
        if y not in years:
            df_fn = pd.concat([df_fn, loaddf(y)])
            fn.append(getfn(df_fn, d))
            years.append(y)
        else:
            fn.append(getfn(df_fn, d))

    return fn


def calcindex(df):
    '''Calculation of the IBP index. If Solar Radio Flux lower than 80 the IBP index is set to -1.

    Parameters
    ----------
    df : pandas.DataFrame (with columns Doy, Lon, LT and F10.7)

    Returns
    -------
    pandas.DataFrame
        contains the columns: Doy (Day(s) of the year), Month (Month(s) from the day of the year),
        Lon (Longitude(s)), LT (Local Time(s)), F10.7 (solar index(es)), IBP (Ionospheric Bubble Index, value(s) between 0.0 and 1.0).
    '''
    def calcibp(index, row):
        df = ibp.calculateIBPindex(day_month=int(row["Doy"]), longitude=row["Lon"], local_time=row["LT"], f107=row["F10.7"])
        df = df.set_index([pd.Index([index])])
        return df

    index_sort = df.index

    tmp = df[ (df["F10.7"] < 80) ].copy()
    tmp["IBP"] = -1
    tmp['Month'] = [ int(datetime.strptime(f"2023-{t}","%Y-%j").strftime('%m')) for t in tmp.Doy ]
    tmp['Month'] = tmp['Month'].astype(int)

    di = pd.DataFrame(columns=tmp.columns)

    i = 0
    for index, row in df[ (df["F10.7"] >= 80) ].iterrows():
        if i == 0:
            di = calcibp(index, row)
            i = 1
        else:
            ib = calcibp(index, row)
            di = pd.concat([di, ib])

    di = pd.concat([di, tmp])
    di = di.reindex(index_sort)

    return di[['Doy','Month','Lon','LT','F10.7','IBP']]


def satelliteIBP(df):
    '''Calculation of the IBP index at the specified time and longitude

    Parameters
    ----------
    df : pandas.DataFrame (with DatetimeIndex and columns Longitude and F107)

    Returns
    -------
    pandas.DataFrame
        with column IBP (Ionospheric Bubble Index, values between 0.0 and 1.0)

    '''

    # Create required columns
    df['Lon'] = np.rint(df['Longitude'])
    df['dt'] = df.index
    df['timediff'] = ((df.dt - df.dt.shift()) / np.timedelta64(1, 'm')).gt(3).cumsum()
    df['londiff'] = np.absolute(df['Lon'] - df['Longitude'])

    tmp = df.loc[df.groupby(["timediff", "Lon"]).agg({"londiff": ['idxmin']})[('londiff', 'idxmin')].values]
    tmp["Doy"], tmp["LT"] = getlt(tmp.index.tolist(), tmp.Lon)

    tmp.rename(columns={"F107": "F10.7"}, inplace=True)

    tmp['IBP'] = calcindex(tmp[['Doy', 'LT', 'Lon', 'F10.7']])['IBP']

    # merge df and tmp
    df = pd.concat([df, tmp['IBP']], axis=1)
    del df["Lon"], df["dt"], df["londiff"], df["timediff"]

    return df


def globalIBP(datum, fn=150):
    '''Calculation of the IBP index for all longitudes at the specified time.

    Parameters
    ----------
    datum : datetime

    Returns
    -------
    pandas.DataFrame
        contains the columns: Doy (Day of the year), Month (Month from the day of the year),
        Lon (Longitudes), LT (Local Times), F10.7 (solar index), IBP (Ionospheric Bubble Index, values between 0.0 and 1.0).
    '''
    df = pd.DataFrame(columns=["Doy", "Lon", "LT", "F10.7"])
    df["Lon"] = np.arange(-180,180)
    df["Doy"], df["LT"] = getlt(datum, df["Lon"])

    if datum.date() >= datetime.now().replace(tzinfo=timezone.utc).date():
        df["F10.7"] = fn
    else:
        df["F10.7"] = downloadfn(datum)[0]

    return calcindex(df)

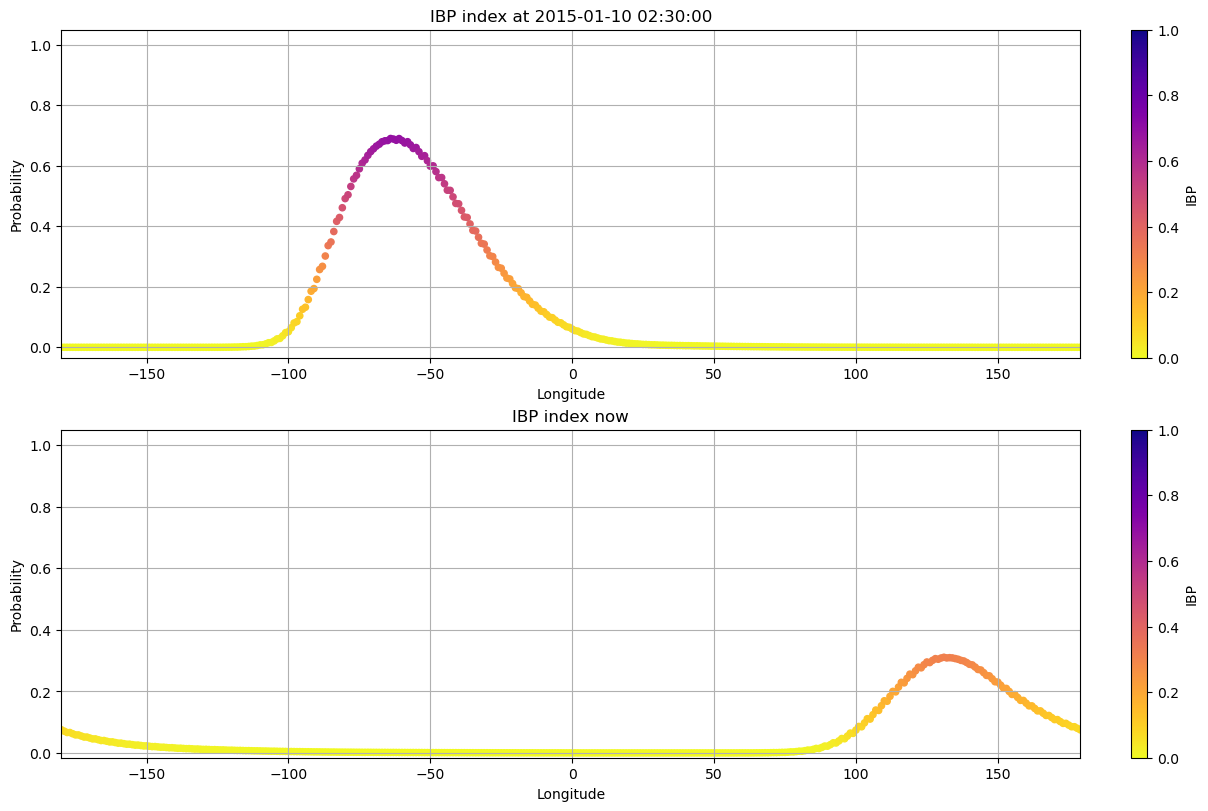

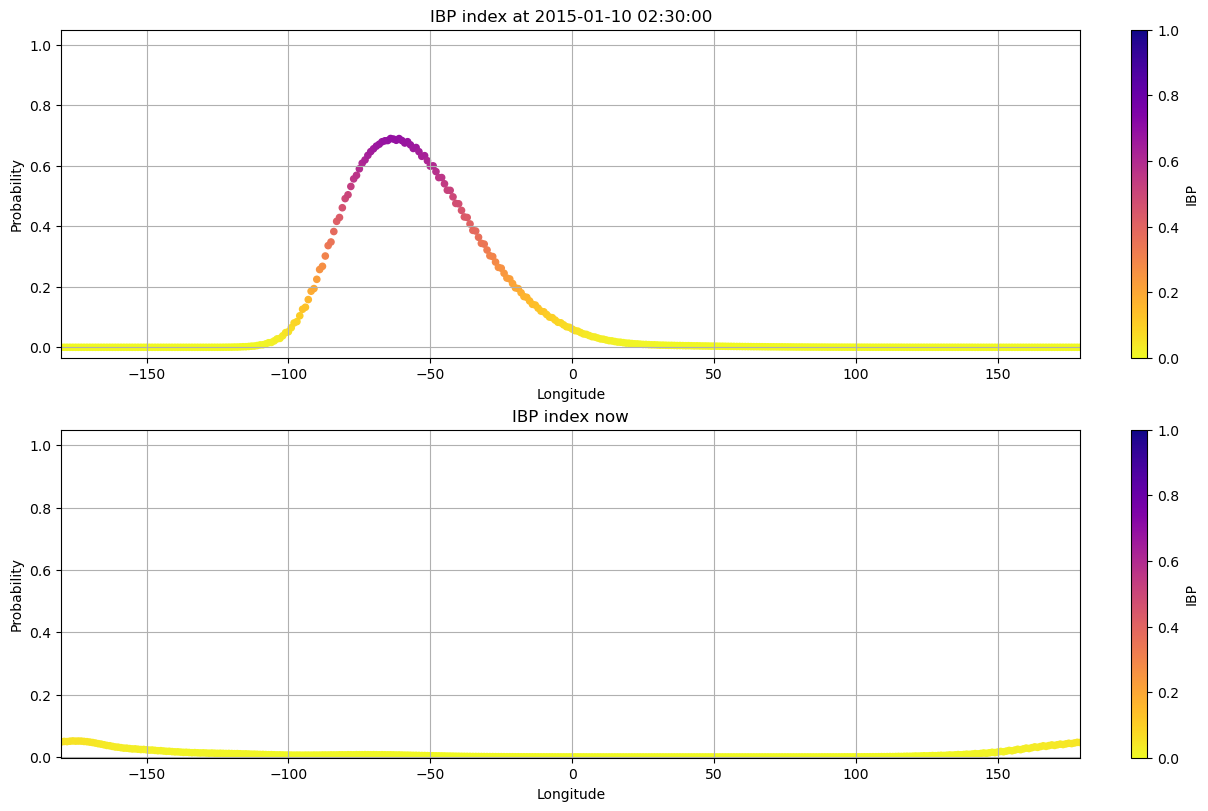

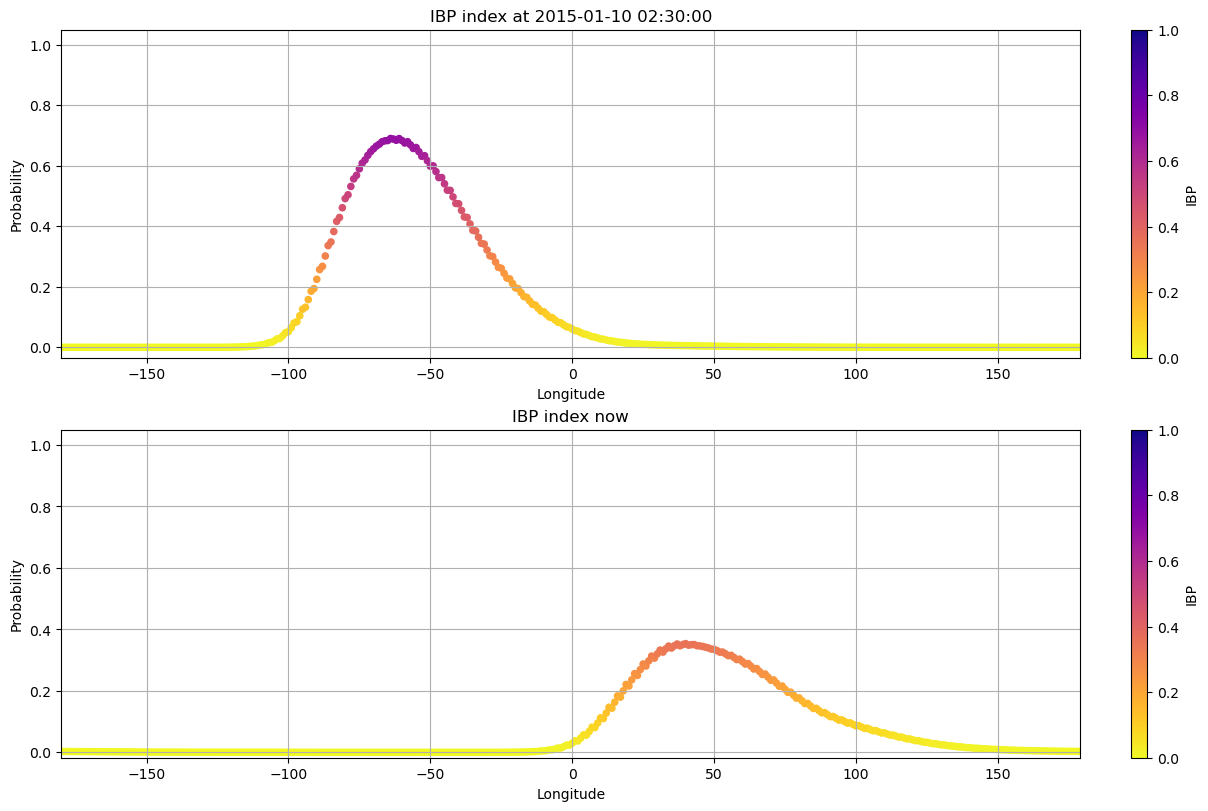

IBP index around the earth at specific time

datum = datetime(2015, 1, 10, 2, 30).replace(tzinfo=timezone.utc)
#datum = datetime(2016, 4, 21, 22,50,0).replace(tzinfo=timezone.utc)

df1 = globalIBP(datum)
df2 = globalIBP(datetime.now())

fig, ax = plt.subplots(2,1,figsize=(12, 8), layout='constrained')
df1.plot.scatter(x='Lon', y='IBP', title=f'IBP index at {datum.strftime("%Y-%m-%d %H:%M:%S")}',
        xlabel='Longitude', ylabel='Probability', grid=True, xlim=(-180,179),
        c='IBP', colormap='plasma_r', vmin=0, vmax=1, ax=ax[0],
        sharex=False)
# sharex=False - must be there because there is still a bug and xlabel and tickmarks will not appear otherwise
df2.plot.scatter(x='Lon', y='IBP', title=f'IBP index now',
        xlabel='Longitude', ylabel='Probability', grid=True, xlim=(-180,179),
        c='IBP', colormap='plasma_r', vmin=0, vmax=1, ax=ax[1],
        sharex=False)

for a in ax:
    a.set_ylim(top=1.05)

plt.show()

IBP Index along the orbit of a satellite

starttime = datetime(2022, 11, 26, 17,0,0).replace(tzinfo=timezone.utc)
endtime = datetime(2022, 11, 28, 5,0,0).replace(tzinfo=timezone.utc)

sat = 'B'

df = satelliteIBP(loadsatellitedata(starttime, endtime, sat))

display(df)

fig, axes = plt.subplots(1,2,figsize=(17, 5), layout='constrained')

df.plot(x="Longitude", y="Bubble_Index", ax=axes[0], color='orange', kind='scatter', label='IBI - Bubble_Index')
#df.plot(x="Longitude", y="Bubble_Probability", ax=axes[0], color='g', kind='scatter', label='IBI - Bubble_Probability')
df.plot(x="Longitude", y="IBP", kind="scatter", ax=axes[0], color='b', label='IBP')

df.plot(y="Bubble_Index", ax=axes[1], color='orange', marker=".", linewidth=0, label='IBI - Bubble_Index')
#df.plot(x="Loy="Bubble_Probability", ax=axes[0], color='g', kind='scatter', label='IBI - Bubble_Probability')
df.plot(y="IBP", marker=".", linewidth=0, ax=axes[1], color='b', label='IBP')


axes[0].set_xlabel('Longitude')
axes[0].set_xlim(-180,180)

for ax in axes:
    ax.set_ylabel('probability')
    ax.set_ylim(top=1.05)
    ax.legend()
    ax.set_title(f'Plasma Bubbles detectet by satellite {sat}')
    ax.grid()

plt.show()

	Spacecraft	Flags_q	Flags_B	Longitude	Radius	Bubble_Probability	Flags_Bubble	F107	Bubble_Index	Flags_F	Latitude	IBP
Timestamp
2022-11-26 17:32:38	B	0	0	41.735251	6888588.78	0.0	0	107.242806	0	1	-44.990729	NaN
2022-11-26 17:32:39	B	0	0	41.736026	6888584.63	0.0	0	107.242790	0	1	-44.927609	NaN
2022-11-26 17:32:40	B	0	0	41.736791	6888580.47	0.0	0	107.242774	0	1	-44.864488	NaN
2022-11-26 17:32:41	B	0	0	41.737544	6888576.30	0.0	0	107.242758	0	1	-44.801367	NaN
2022-11-26 17:32:42	B	0	0	41.738287	6888572.13	0.0	0	107.242742	0	1	-44.738245	NaN
...	...	...	...	...	...	...	...	...	...	...	...	...
2022-11-28 04:40:16	B	0	0	-122.568657	6875021.45	0.0	0	107.127674	0	1	44.727242	NaN
2022-11-28 04:40:17	B	0	0	-122.567896	6875010.38	0.0	0	107.127672	0	1	44.790612	NaN
2022-11-28 04:40:18	B	0	0	-122.567125	6874999.32	0.0	0	107.127669	0	1	44.853982	NaN
2022-11-28 04:40:19	B	0	0	-122.566342	6874988.26	0.0	0	107.127667	0	1	44.917352	NaN
2022-11-28 04:40:20	B	0	0	-122.565549	6874977.22	0.0	0	107.127665	0	1	44.980722	NaN

32710 rows × 12 columns
